Identify
Retrieve a region from an attribute level, or determine the attribute level of a region.
A controlled benchmark for machine spatial understanding
Do Maps Still Matter
for Machines?
Revisiting the Role of Choropleth Maps in Foundation Model Spatial Understanding
a School of Geographic Sciences, Hunan Normal University, Changsha, China
b Hunan Key Laboratory of Geospatial Big Data Mining and Application, Changsha, China
c School of Information and Communication Engineering, Beijing University of Posts and Telecommunications, Beijing, China
d School of Artificial Intelligence and Big Data, Wuhan Business University, Wuhan, China
e Advanced Interdisciplinary Institute of Satellite Applications, State Key Laboratory of Earth Surface Processes and Resource Ecology, Faculty of Geographical Science, Beijing Normal University, Beijing, China
f The Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing, China
* Corresponding author
2,400synthetic maps
12,000questions
22frontier models
5cognitive dimensions
01 / Overview
Maps remain useful external representations for machines.
Foundation models can directly process structured geographic data. We ask whether transforming the same information into a map still improves spatial reasoning.
ChoroplethMap-Bench compares three controlled input conditions: Data Only, Map Only, and Data + Map. Across 22 open-source and proprietary models, the combined representation produces the strongest overall performance, especially on tasks requiring global spatial understanding.

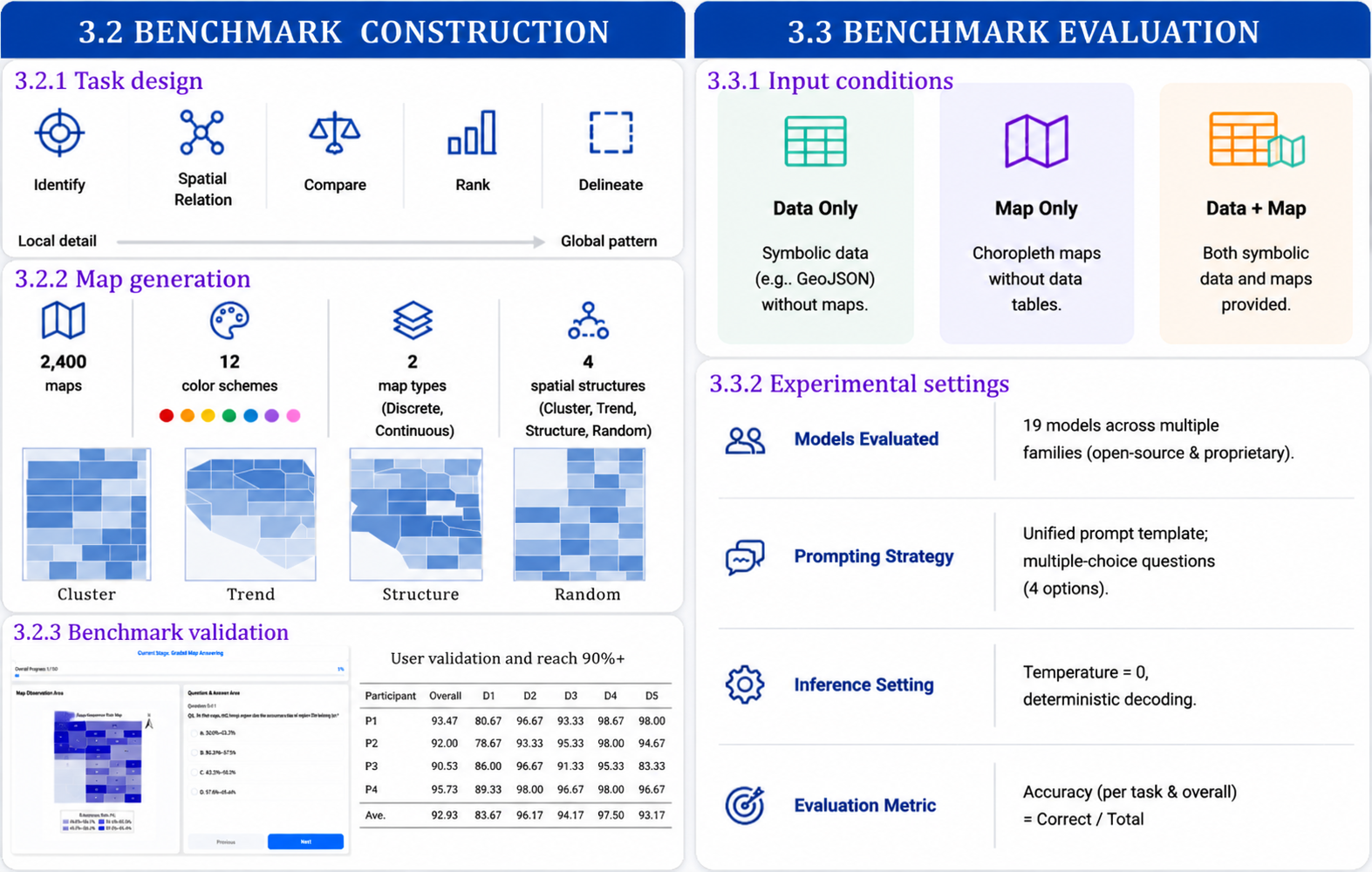

02 / Benchmark
A cognitive progression from local reading to global delineation.
Spatial Recognition
Recognize directional and adjacency relations between geographic regions.
Compare
Compare attribute values across a pair of regions.
Rank
Find global or neighborhood-level extrema across the map.
Delineate
Reason about clusters, gradients, rings, and other global spatial structures.

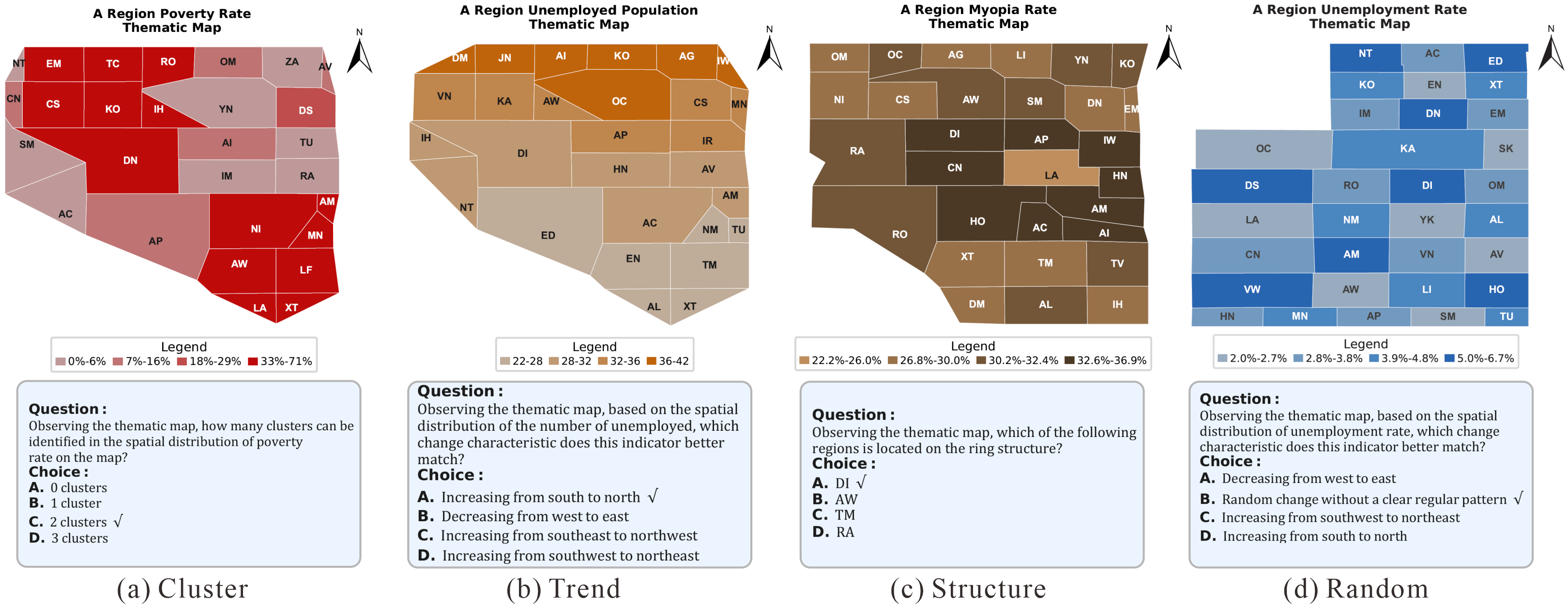

Controlled cartographic design
2 map types · 12 color hues · 4 spatial patterns
The benchmark systematically varies discrete and continuous maps, color hue, and four spatial structures: Cluster, Trend, Structure, and Random. Each map is paired with its underlying GeoJSON representation for fair cross-condition comparison.
03 / Evaluation
The same geographic information, tested through three representations.
Data Only
GeoJSON geometry and regional attributes are supplied as symbolic input.
Map Only
The rendered choropleth map is supplied without its underlying structured data.
Data + Map
Both representations are supplied together to test whether maps add cognitive value.
22 modelsOpen-source and proprietary foundation models
Zero-shotIdentical questions and controlled prompts across conditions
AccuracyMeasured over 12,000 questions for each input condition
04 / Main results
Combining data and maps produces the strongest overall performance.
20 / 22
models perform best with
Data + Map
Data + Map
For discrete maps, Data + Map improves average accuracy by 6.0 percentage points over Data Only and 14.8 points over Map Only. For continuous maps, the corresponding gains are 3.9 and 16.3 points.
Overall accuracy (%)
All evaluated models
The highest score in each row is emphasized. The combined condition leads almost universally; only Qwen3.6-plus and Claude Opus 4.8 are marginally higher with Data Only.
| Model | Data + Map | Data Only | Map Only |
|---|---|---|---|
| Qwen3.5-9B | 61.3 | 52.6 | 42.7 |
| Qwen3.5-4B | 60.8 | 47.2 | 47.4 |
| Qwen3.5-2B | 43.4 | 37.4 | 37.2 |
| Qwen3-VL-8B-Instruct | 40.6 | 37.4 | 34.8 |
| Qwen3-VL-4B-Instruct | 33.7 | 32.3 | 30.6 |
| Qwen3-VL-2B-Instruct | 29.6 | 28.1 | 29.2 |
| Qwen2.5-VL-7B-Instruct | 39.9 | 33.3 | 34.1 |
| Qwen2.5-VL-3B-Instruct | 31.9 | 29.8 | 29.5 |
| GLM-4.6V-Flash | 64.2 | 40.3 | 50.7 |
| InternVL3.5-8B | 64.9 | 60.8 | 46.9 |
| InternVL3.5-4B | 61.0 | 52.3 | 47.7 |
| InternVL3.5-2B | 43.1 | 39.6 | 36.0 |
| Gemma-3-12B-IT | 50.6 | 48.0 | 30.3 |
| Gemma-3-4B-IT | 33.4 | 32.6 | 28.9 |
| MiMo-V2-Omni | 67.4 | 66.6 | 36.4 |
| Gemini-2.5-Flash | 70.2 | 68.7 | 39.4 |
| Qwen3.6-plus | 68.3 | 68.9 | 34.0 |
| Doubao-Seed-2.0-lite | 69.5 | 66.6 | 42.4 |
| Kimi-K2.5 | 77.8 | 67.2 | 63.1 |
| Gemini-3.5-Flash | 83.9 | 78.7 | 70.3 |
| GPT-5.5 | 76.0 | 74.7 | 44.5 |
| Claude Opus 4.8 | 73.6 | 73.8 | 47.1 |
Gemini-3.5-Flash with Data + Map.
GLM-4.6V-Flash with Data + Map.
Maps become most effective when grounded by symbolic data.
05 / What the results reveal
Visual abstraction and symbolic data work best together.
Data + Map leads overall
Twenty of the twenty-two evaluated models achieve their highest accuracy when structured data and rendered maps are provided together.
The task hierarchy remains difficult
Top models approach ceiling performance on D1 Identify, but performance drops on D5 Delineate. Gemini-3.5-Flash reaches 99.9% on D1 and 69.1% on D5, compared with 93.2% human accuracy on D5.

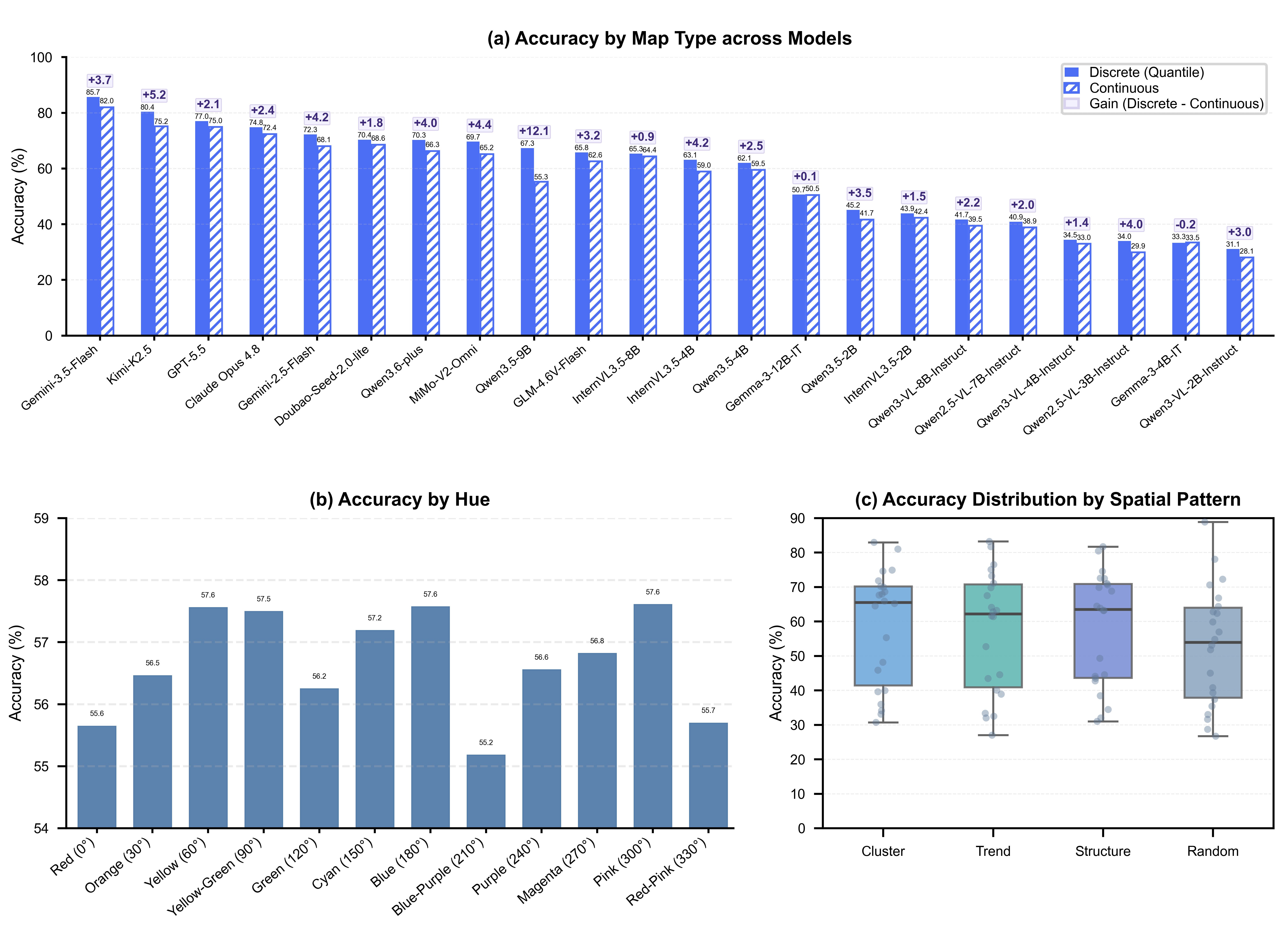

Design changes machine performance
Twenty-one of 22 models perform better on discrete maps. Median accuracy falls from Cluster (65.6%) and Structure (63.5%) to Trend (62.2%) and Random (54.0%).
Hue effects are limited
Across twelve tested hues, within-model variation remains below 2.5 percentage points, suggesting that spatial organization matters more than hue choice.
Robustness checks
Prompting and language shift the level, not the conclusion.
Tree-of-Thought improves Kimi-K2.5 across all three input conditions, while English prompts provide modest gains for both tested proprietary models. In every comparison, the combined representation remains strongest.
Kimi-K2.5 prompting
PromptD+MDataMap
Direct77.867.263.1
Chain-of-Thought76.668.056.9
Tree-of-Thought80.471.668.2
Prompt language
Model / languageD+MDataMap
Gemini-2.5 / Chinese70.268.739.4
Gemini-2.5 / English72.769.840.0
Kimi-K2.5 / Chinese77.867.263.1
Kimi-K2.5 / English79.769.166.9
06 / Conclusion
Maps remain valuable external representations for machine spatial understanding.
Foundation models can increasingly reason from raw structured information, but that does not make cartographic abstraction obsolete. Across the benchmark, maps provide a compact global view that complements precise symbolic records and reduces the burden of reconstructing spatial structure from data alone.
The strongest representation is therefore not visual or symbolic in isolation, but their combination. This result motivates a new research direction: maps designed not only for human readers, but also for machine perception, reasoning, and decision support.
01Representations matter
Data + Map leads for 20 of 22 evaluated models.
02Abstraction still helps
Maps expose global patterns that are costly to recover from records.
03Design for machines
Cartographic choices shape model performance and reliability.
Maps are not being replaced by foundation models. They are becoming part of how foundation models think spatially.
07 / Resources
Explore the paper and benchmark.
08 / Citation
Cite ChoroplethMap-Bench.
@article{wei2026maps,
title={Do maps still matter for machines: revisiting the role of choropleth maps in foundation model spatial understanding},
author={Wei, Zhiwei and Sun, Yonghe and Liu, Zhenjia and Xu, Wenjia and He, Chao and Dong, Weihua and Liu, Chunbo and Liao, Hua},
journal={GIScience \& Remote Sensing},
volume={63},
number={1},
pages={2711495},
year={2026},
publisher={Taylor \& Francis}
}
